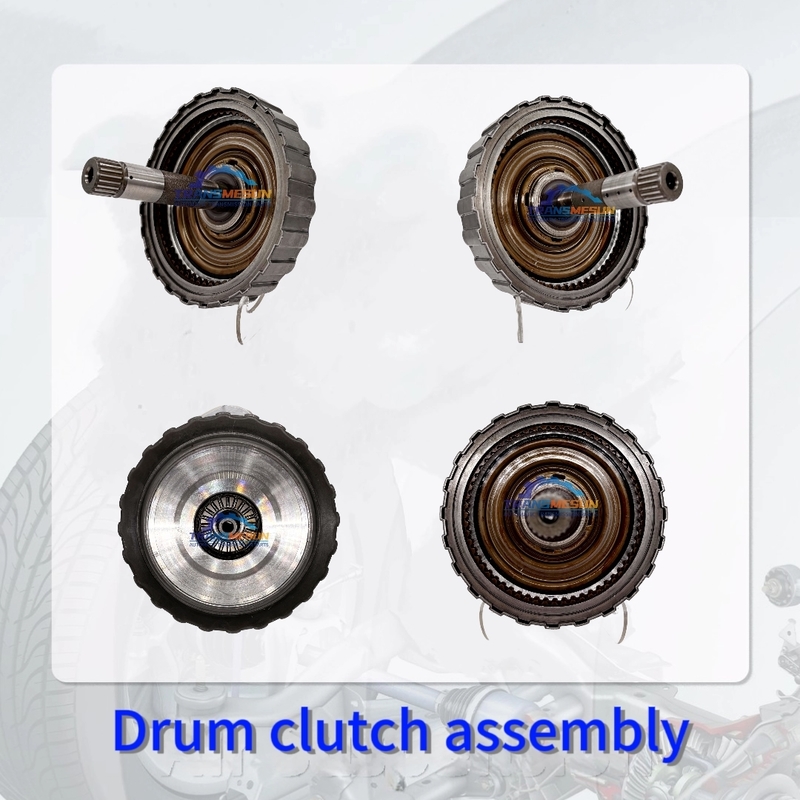

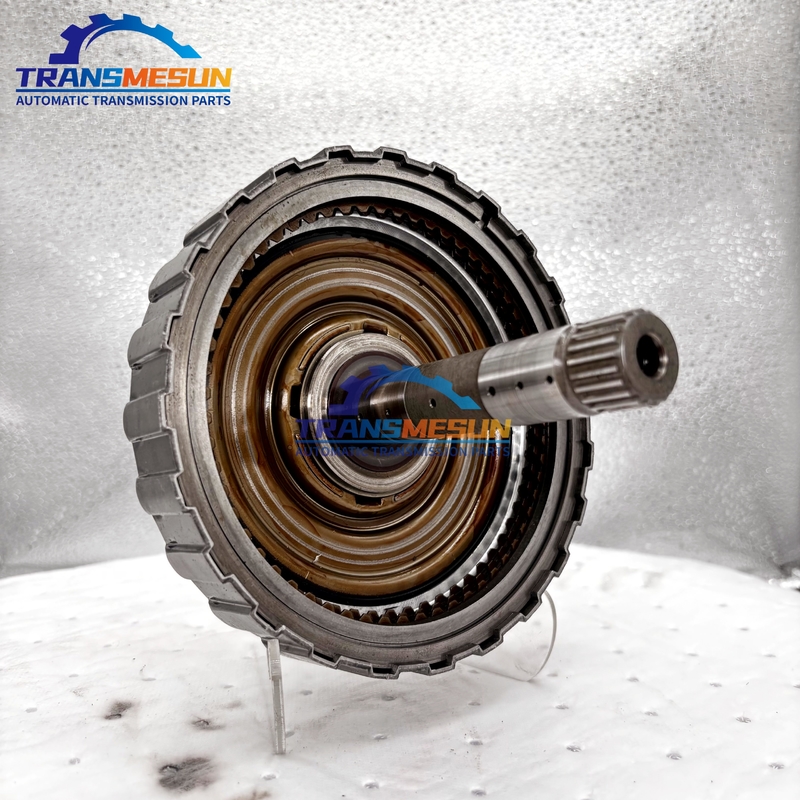

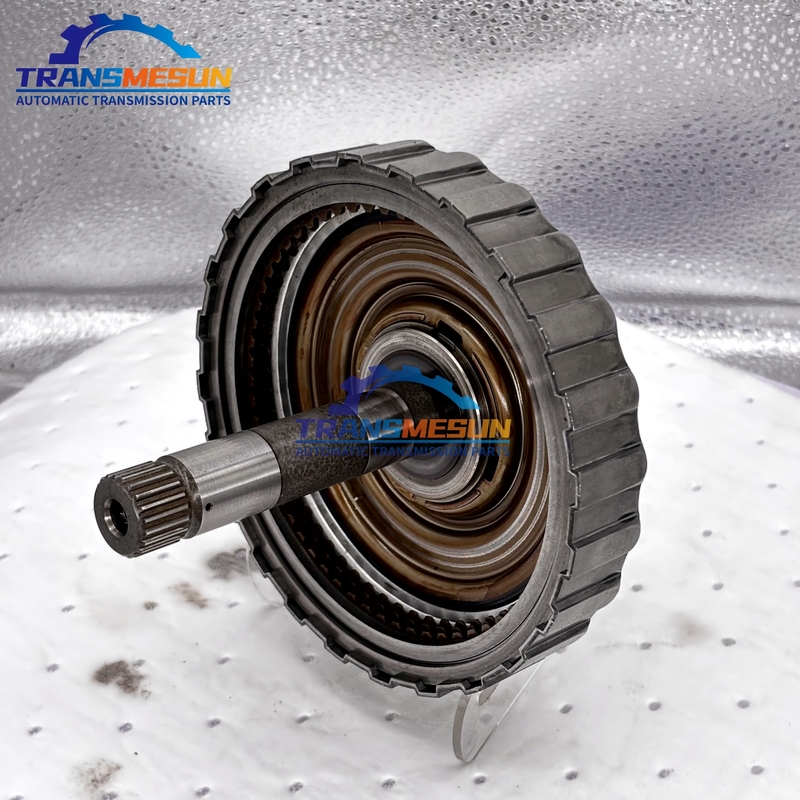

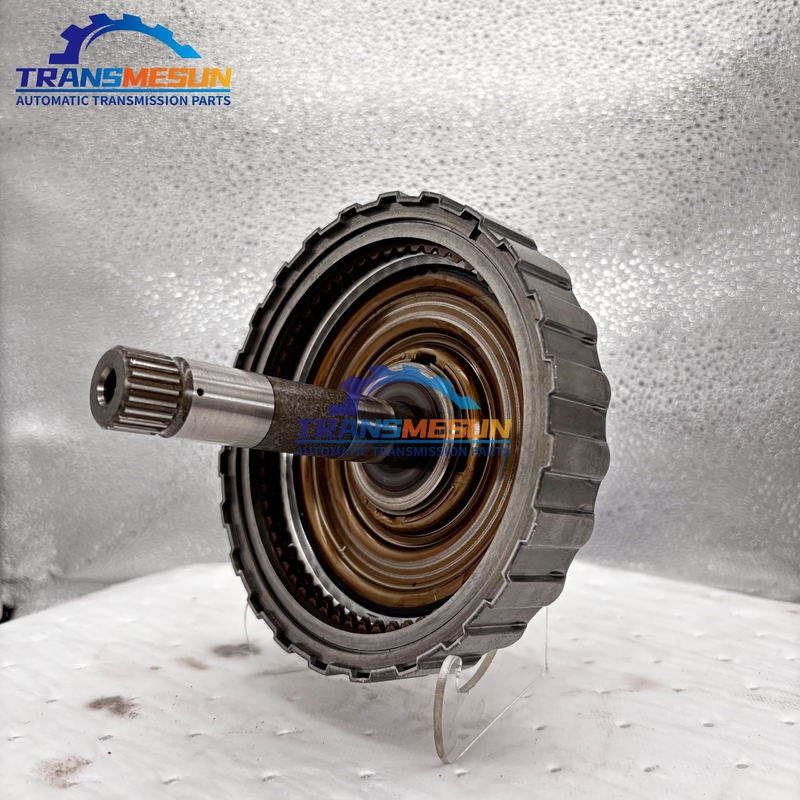

AWTF60SN 변속기 4-5-6 K2 클러치 드럼 4 클러치 15 스플라인 샤프트 클러치 집합
제품 요약
Application: ZF 6HP/8HP or similar, handling 4th-6th gear shifts under high torque (500–700Nm). Design: 15-spline hardened steel shaft (SAE 4140, 60–64 HRC) for direct hub engagement. 4-clutch pack (3 friction + 4 steel plates, 0.5–0.7mm clearance new). Critical Specs: Drum OD: 120–125mm, anodized for thermal resistance (max 200°C). Spline tolerance: ±0.03mm (wear >0.1mm causes slippage). Failure Modes: Spline shear (fatigue under abrupt shifts). Drum warping (overheat cycles
기본 속성
브랜드 이름:
Volkswagen Passat
모델 번호:
AWTF60SN
부동산 거래
최소 주문 수량:
1
가격:
0-1000
지불 조건:
T/T
제품 설명
-
Application: ZF 6HP/8HP 또는 유사 변속기, 고토크 (500–700Nm)에서 4-6단 변속 처리.
-
Design:
-
15-spline 경화 강철 샤프트 (SAE 4140, 60–64 HRC)로 직접 허브 결합.
-
4-클러치 팩 (3개의 마찰판 + 4개의 강철판, 신품 시 0.5–0.7mm 간극).
-
-
Critical Specs:
-
드럼 외경: 120–125mm, 내열성을 위해 아노다이징 처리 (최대 200°C).
-
스플라인 공차: ±0.03mm (마모 >0.1mm 시 슬립 발생).
-
-
Failure Modes:
-
스플라인 전단 (급격한 변속 시 피로).
-
드럼 변형 (과열 사이클).
-
씰 파손 (부스트 단계에서 압력 손실).
-
Note: 필요합니다 저점도 ATF (예: ZF LG8)로 최적의 클러치 조절.
제품 세부 정보
강조하다:
4-5-6 K2 transmission clutch drum
,15 spline shaft clutch assembly
,4 clutches transmission parts
Year：:
2007-
MODEL：:
AWTF60SN
SIZE::
15X15X15CM
Brand：:
Volkswagen Passat
Item Weight::
2.5kg
ＯＥＮＯ:
09G 09M 09K AWTF60SN
Applicable Brand::
Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: mini
