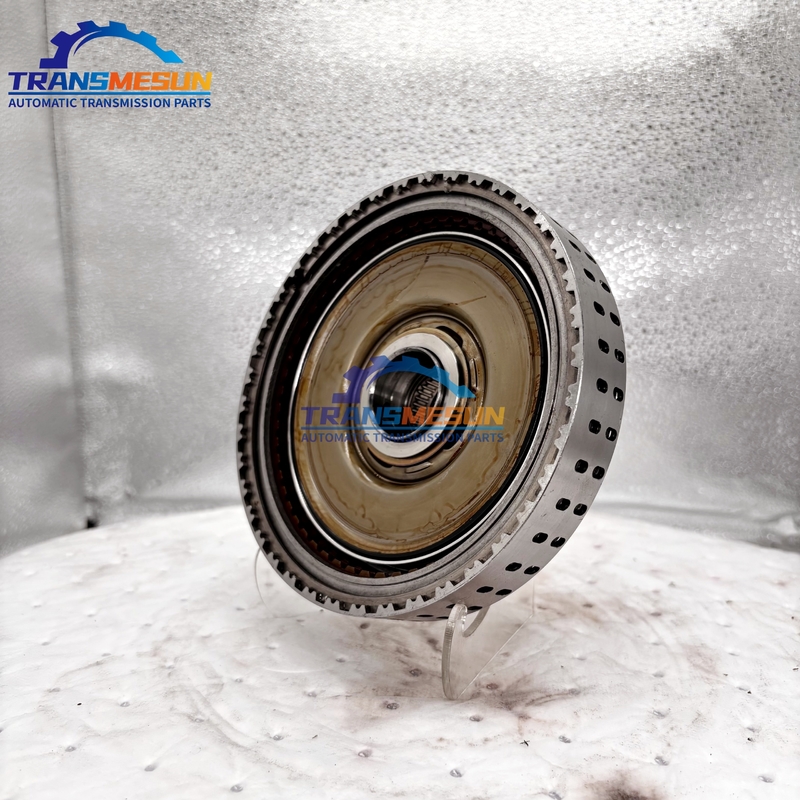

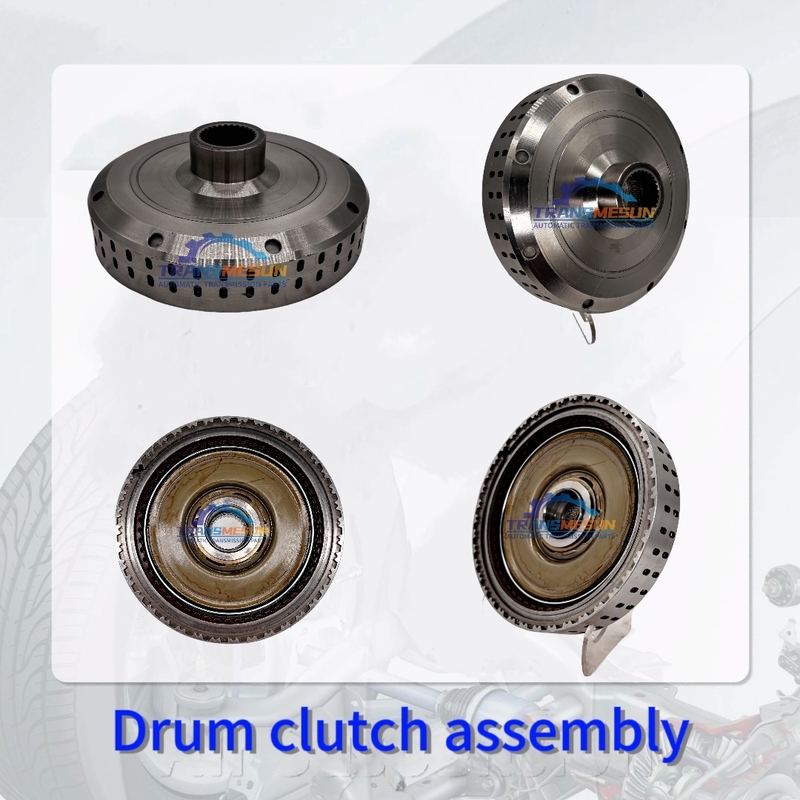

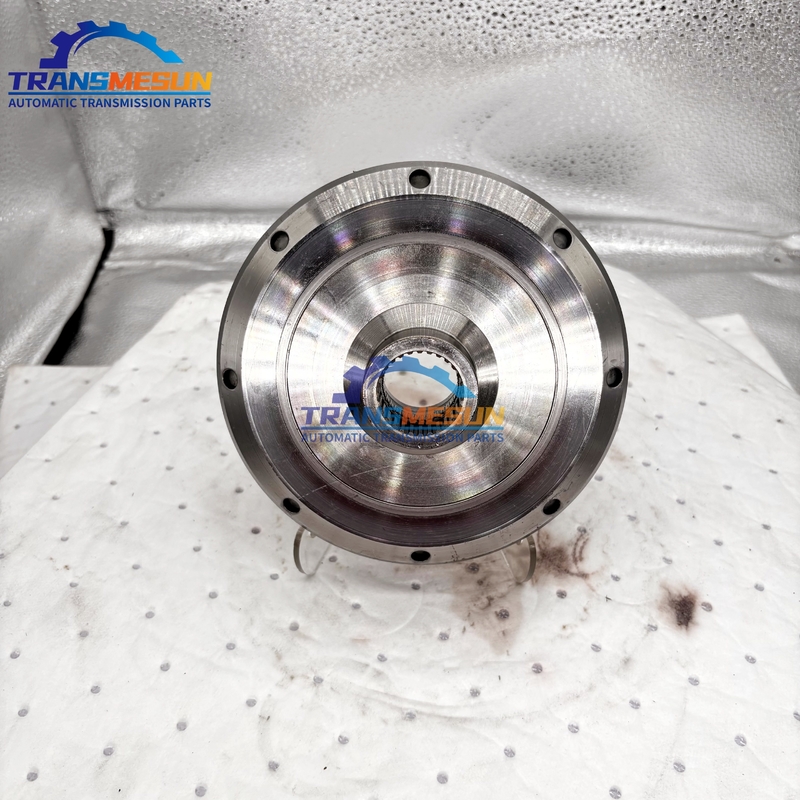

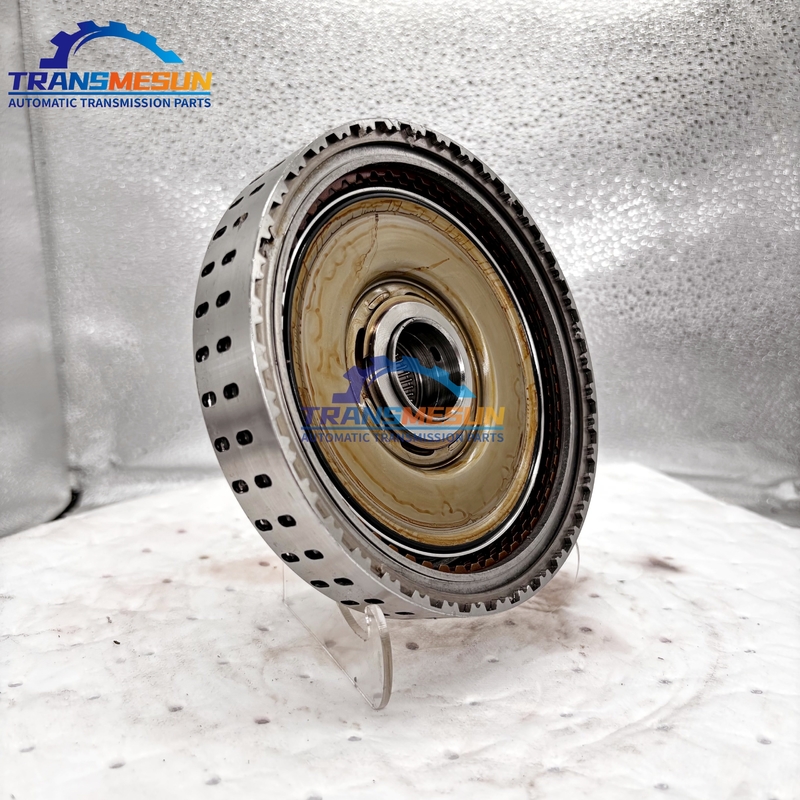

09G TF-60SN CVT 자동 변속기 K1 드럼 클러치 집합
제품 요약
Key Specifications & Analysis Function: 1st/3rd/5th gear engagement in VW/Audi transverse 6-speed applications. Design: 3-piston clutch pack (5 friction plates, 6 steel plates) Drum material: Hardened aluminum (Si-Cu alloy) with anti-wear coating Critical Tolerances: Plate clearance: 1.2–1.6mm (new), >2.0mm requires replacement Piston stroke: 2.8–3.2mm Failure Modes: Seal leaks (causing delayed engagement) Drum spline wear (>0.2mm play leads to shudder) Overheating (if ATF
기본 속성
브랜드 이름:
Volkswagen Passat
모델 번호:
09M; TF-60SN
부동산 거래
최소 주문 수량:
1
가격:
0-1000
지불 조건:
T/T
제품 설명
주요 사양 및 분석
-
기능: VW/Audi 횡 배치 6단 변속기에서 1/3/5단 기어 체결.
-
설계:
-
3피스톤 클러치 팩 (5개의 마찰판, 6개의 강철판)
-
드럼 재질: 내마모 코팅된 경화 알루미늄 (Si-Cu 합금)
-
-
중요 허용 오차:
-
판 간극: 1.2–1.6mm (신품), >2.0mm는 교체 필요
-
피스톤 스트로크: 2.8–3.2mm
-
-
고장 모드:
-
씰 누출 (체결 지연 유발)
-
드럼 스플라인 마모 (0.2mm 초과 유격은 떨림 유발)
-
과열 (ATF 열화 시, 판 글레이징 유발)
-
참고: 사용 VW G 055 025 A2 오일; 고마일리지 유닛에서 흔한 고장.
제품 세부 정보
강조하다:
09G TF-60SN CVT transmission clutch
,automatic transmission K1 drum assembly
,CVT clutch assembly with warranty
Year：:
2007-
MODEL：:
09M; TF-60SN
SIZE::
15X15X15CM
Brand：:
Volkswagen Passat
Item Weight::
2.5kg
ＯＥＮＯ:
09G TF-60SN
Applicable Brand::
Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: mini
Mrs. Kinny
Foreign trade Manager
- 이메일: admin@transmesun.com
- 전화: +8618665691829
- 왓츠앱: 8618665691829
-
웨이 채팅:
+8618665691829
