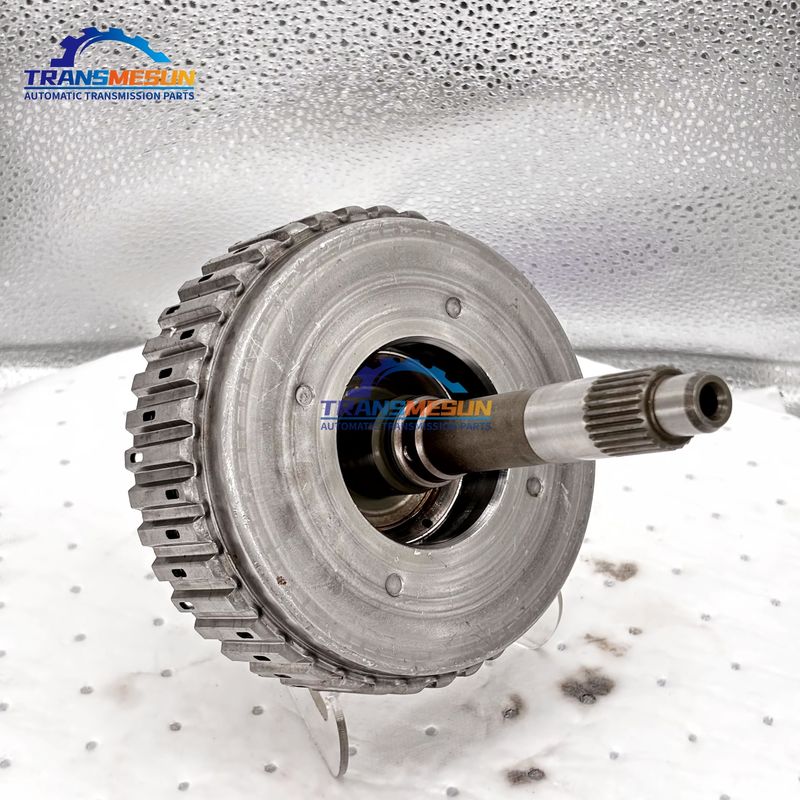

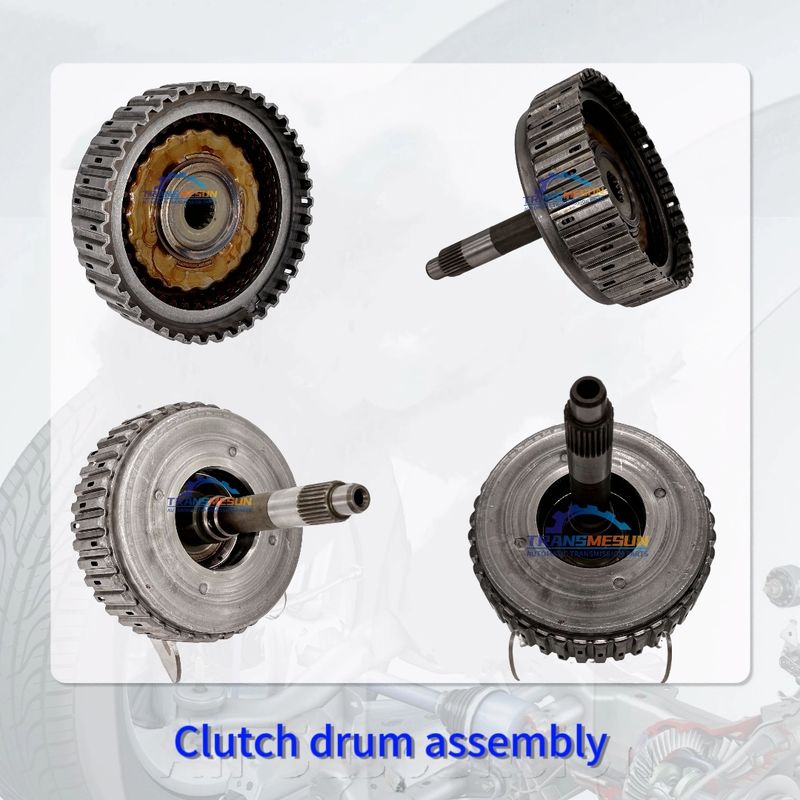

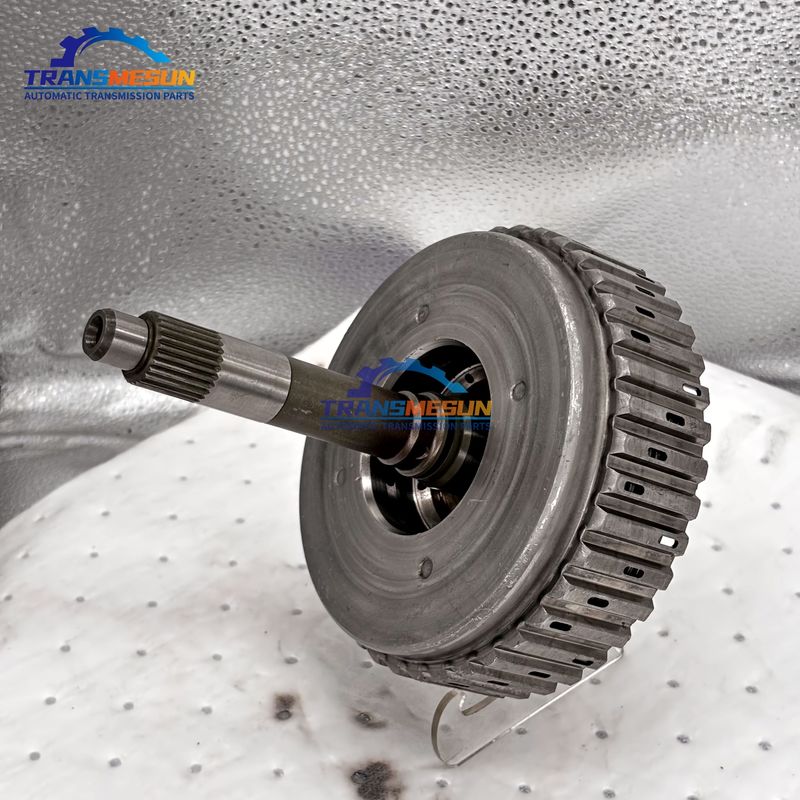

U151F 자동 변속기 전진 기어 클러치 드럼 입력 어셈블리는 Toyota Highlander 변속기에 적합합니다.
Product Summary
Function: Transmits engine torque to the planetary gearset via engaged clutch plates (typically 1st-3rd/4th gears). Key Components: Input Shaft: Hardened steel with precision-ground splines (connects to torque converter) Clutch Drum: Aluminum/steel hybrid with laser-welded piston channel Integrated Piston: High-pressure seals (Vitron or HNBR) for rapid apply Failure Modes: Spline Wear: Causes clutch drag (delayed engagement, P0776 codes) Drum Warpage: Overheating distorts
Basic Properties
Brand Name:
Toyota
Model Number:
U151E;U151F
Trading Properties
Minimum Order Quantity:
1
가격:
0-1000
Payment Terms:
T/T
제품 설명
-
-
-
-
Function: 클러치 플레이트 체결을 통해 엔진 토크를 유성 기어 세트로 전달 (일반적으로 1단-3단/4단 기어).
Key Components:
-
Input Shaft: 정밀 연마된 스플라인이 있는 경화 강철 (토크 컨버터에 연결)
-
Clutch Drum: 레이저 용접된 피스톤 채널이 있는 알루미늄/강철 하이브리드
-
Integrated Piston: 빠른 작동을 위한 고압 씰 (Vitron 또는 HNBR)
Failure Modes:
-
Spline Wear: 클러치 드래그 유발 (지연된 체결, P0776 코드)
-
Drum Warpage: 과열로 인해 밀봉 표면 변형 (>0.1mm 런아웃 = 교체)
-
Seal Extrusion: 오염된 ATF가 씰을 손상 → 압력 손실
Critical Checks:
-
Measure shaft endplay (<0.3mm)
-
Verify drum concentricity (dial indicator test)
-
Inspect piston bore for scoring
Pro Tip: 새 클러치 플레이트를 ATF에 30분 동안 미리 담가두세요 – 건조된 플레이트는 초기 변속 플레어를 유발합니다.
-
-
-
-
제품 세부 정보
강조하다:
U151F 자동 변속기 입력 어셈블리
,Toyota Highlander 자동 변속기 입력 어셈블리
Year：:
2001-2014
MODEL：:
U151E;U151F
SIZE::
25x20x10cm
Brand：:
토요타
Item Weight::
3kg
ＯＥＮＯ:
3570128020
Displacement::
3.0L; 3.3L. 3.5L
Applicable Brand::
알파드 ph 알 파드 g/v ； 알파드/vellfire/hv ； avensis ； camry ； thata t/l
